| Thermal Power Range: | 0.35～7MW/h |
| Fuel Options: | Natural Gas, LPG, LNG, Biogas, Diesel, Heavy Oil, Dual Fuel , Propane , #2 Fuel Oil |
| Hot Water Temperature Outlet/Inlet: | 95/70℃ |
| Key Features: |
Thermal efficiency 109%, Exhaust gas temperature 35℃. Highly integrated compact structure, small footprint. Low temperature operation, energy saving. Ultra quite operation low to 40db. Modular design technology, save construction cost. Super long service life of 30 years. 316 SS material heat exchanger, strong corrosion resistance. |

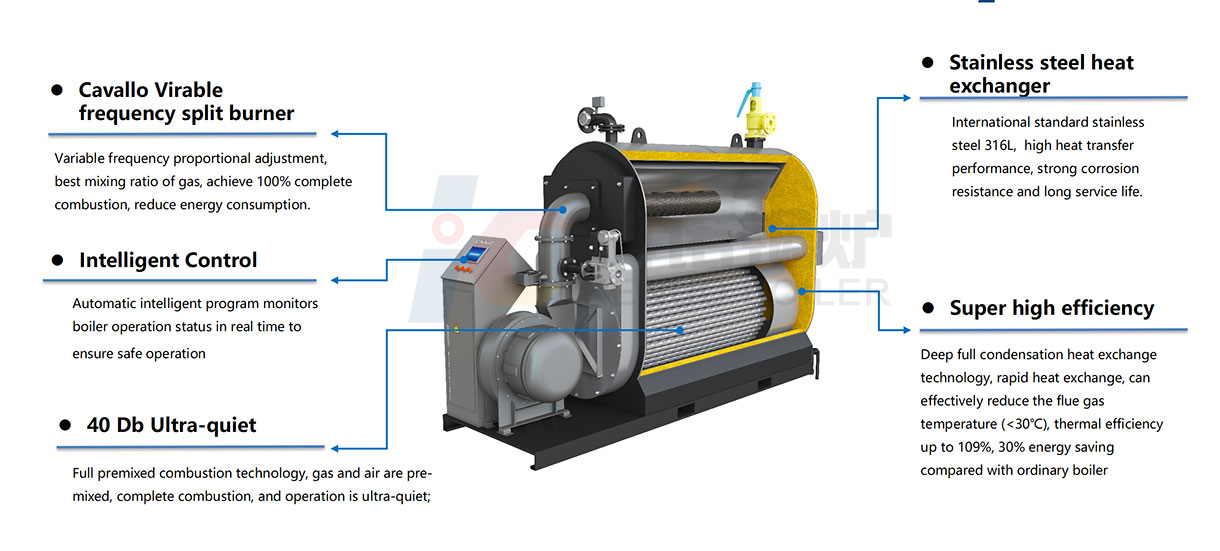

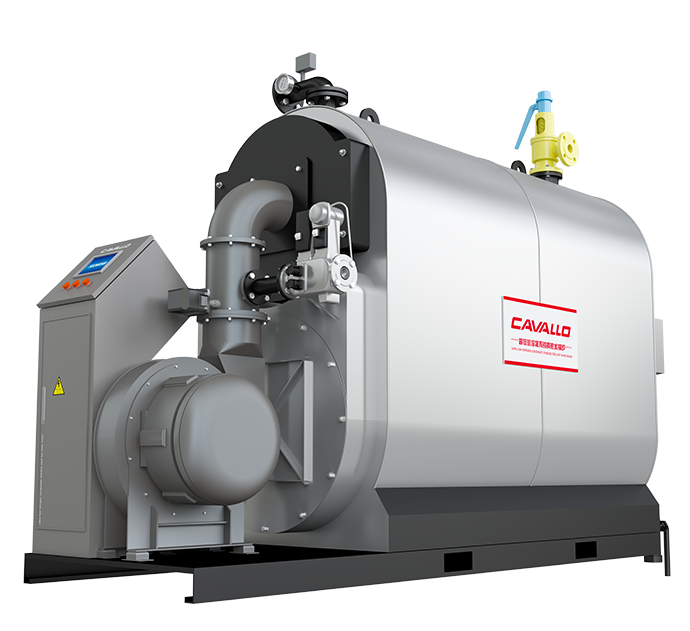

Cavallo ultra-low nitrogen stainless steel fully condensing boiler is a newly upgraded high-efficiency boiler of Kenuo. The boiler adopts 316L stainless steel, efficient fire tube structure and large water volume design, with thermal efficiency up to 109%; equipped with Cavallo variable frequency fully premixed ultra-low nitrogen burner, nitrogen oxide emissions can be as low as ≤25mg/m3, far below the international emission standards; extremely low flue gas heat loss, exhaust temperature can be as low as ≤35℃ (PP material pipe can be selected as flue); the boiler has an ultra-long service life of 30 years, occupies a small area, and is suitable for heating and domestic hot water supply in residences, offices and any places.
|
Model |
Rated thermal power |
Rated outlet water |
Rated Outlet/inlet Water |
Heat Efficiency(%) |
NOx Emission(mg/m³) |
Transportation Weight(ton) |
Transportation Dimension |
|---|---|---|---|---|---|---|---|
|
NWNS0.35-0.6/95/70-Y(Q) |
350 |
0.6 |
95/70 |
Max 109 |
≤80/30 |
1160 |
2170×1300×2000 |
|
NWNS0.7-0.6/95/70-Y(Q) |
700 |
0.6 |
95/70 |
Max 109 |
≤80/30 |
1659 |
3054×1300×1960 |
|
NWNS1.05-0.6/95/70-Y(Q) |
11050 |
0.6 |
95/70 |
Max 109 |
≤80/30 |
1838 |
3245×1460×2100 |
|
NWNS1.4-0.6/95/70-Y(Q) |
1400 |
0.6 |
95/70 |
Max 109 |
≤80/30 |
2328 |
3350×1500×2380 |
|
NWNS2.1-0.6/95/70-Y(Q) |
2100 |
0.6 |
95/70 |
Max 109 |
≤80/30 |
4127 |
3990×1700×2600 |
|
NWNS2.8-0.6/95/70-Y(Q) |
2800 |
0.6 |
95/70 |
Max 109 |
≤80/30 |
5446 |
4340×1850×2870 |
|
NWNS3.5-0.6/95/70-Y(Q) |
3500 |
0.6 |
95/70 |
Max 109 |
≤80/30 |
6807 |
5603×1522×3059 |
|
NWNS4.2-0.6/95/70-Y(Q) |
4200 |
0.6 |
95/70 |
Max 109 |
≤80/30 |
8112 |
6250×1810×3217 |
|
NWNS5.6-0.6/95/70-Y(Q) |
5600 |
0.6 |
95/70 |
Max 109 |
≤80/30 |
11200 |
6973×2055×4035 |
|
NWNS7-0.6/95/70-Y(Q) |
7000 |
0.6 |
95/70 |
Max 109 |
≤80/30 |
13652 |
7220×2312×4513 |
